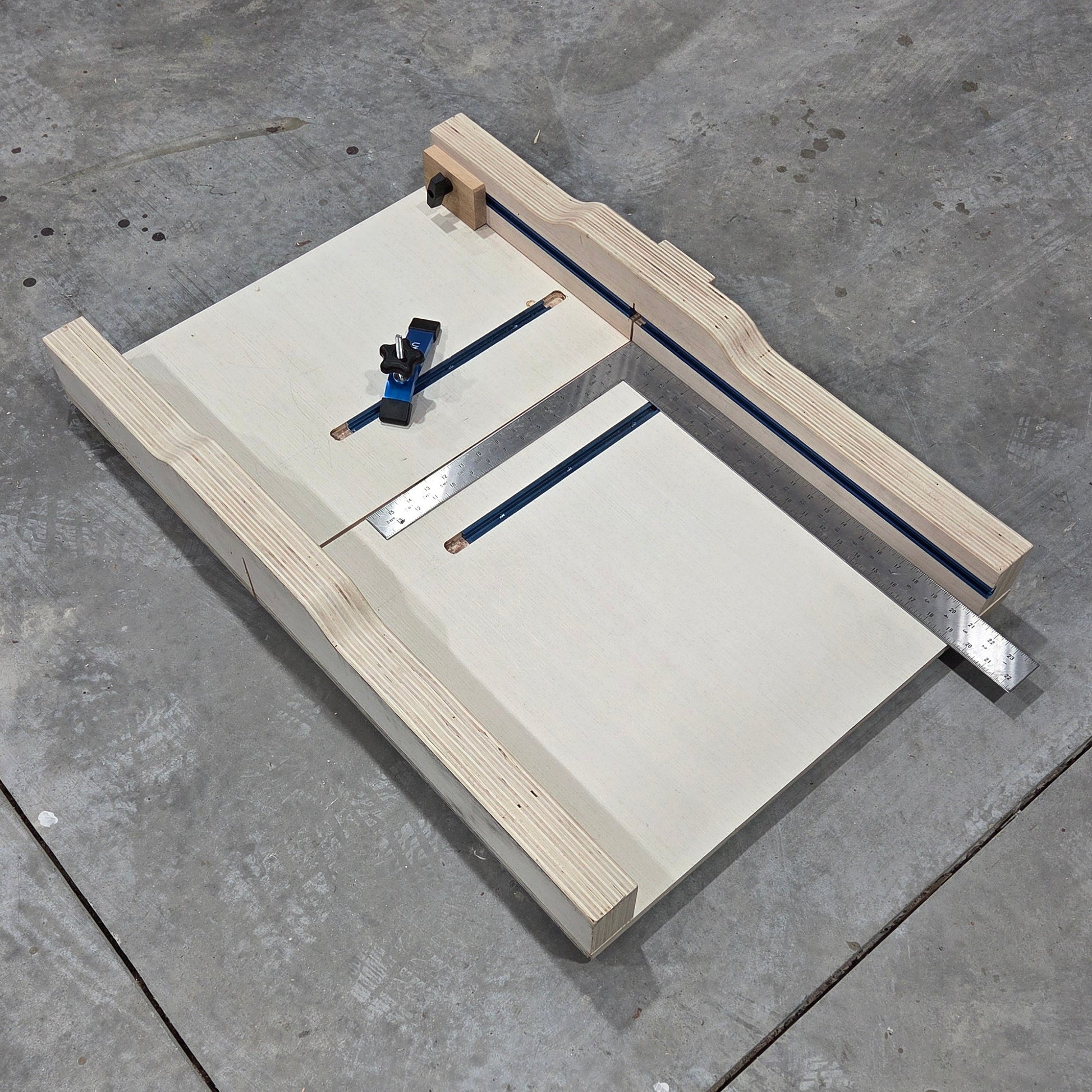

DIY Plans - Table Saw Crosscut Sled - Large 24x36 with No-Math Calibration - Standard & Metric

The Common Sense Crosscut Sled

Stop chasing decimals and start cutting. Most crosscut sled plans force you into the "5-Cut Method" rabbit hole—a time-consuming process that treats a woodshop like a machine shop. This sled is designed for practical precision. If your square is square, your sled will be too. No math, no spreadsheets, just a reliable setup that gets you back to building.

The Build Specs

• Footprint: 24" x 36" [610mmx915mm]

• Capacity: 19-1/2" [495mm] maximum crosscut depth.

• Universal Design: Fits standard table saws with 3/4" miter slots.

• Dual Measurements: All dimensions provided in both Standard (Imperial) and Metric.

Features for Real Woodworking

• Integrated T-Track: Designed for quick-adjust stop blocks and secure hold-downs (included in the plans).

• Zero-Clearance Reliability: Gives you cleaner cuts and better tear-out support than your factory throat plate.

• Repeatable Accuracy: Once it's set with a square, it stays square.

What’s Included

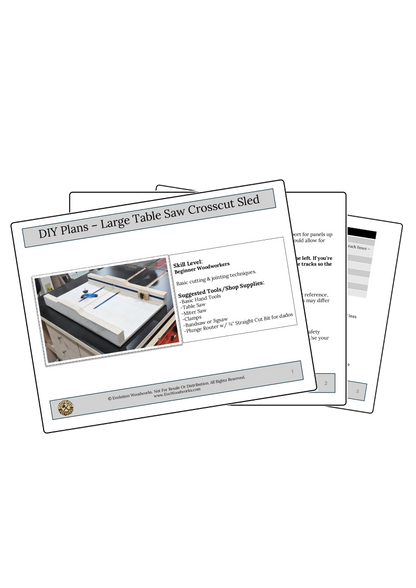

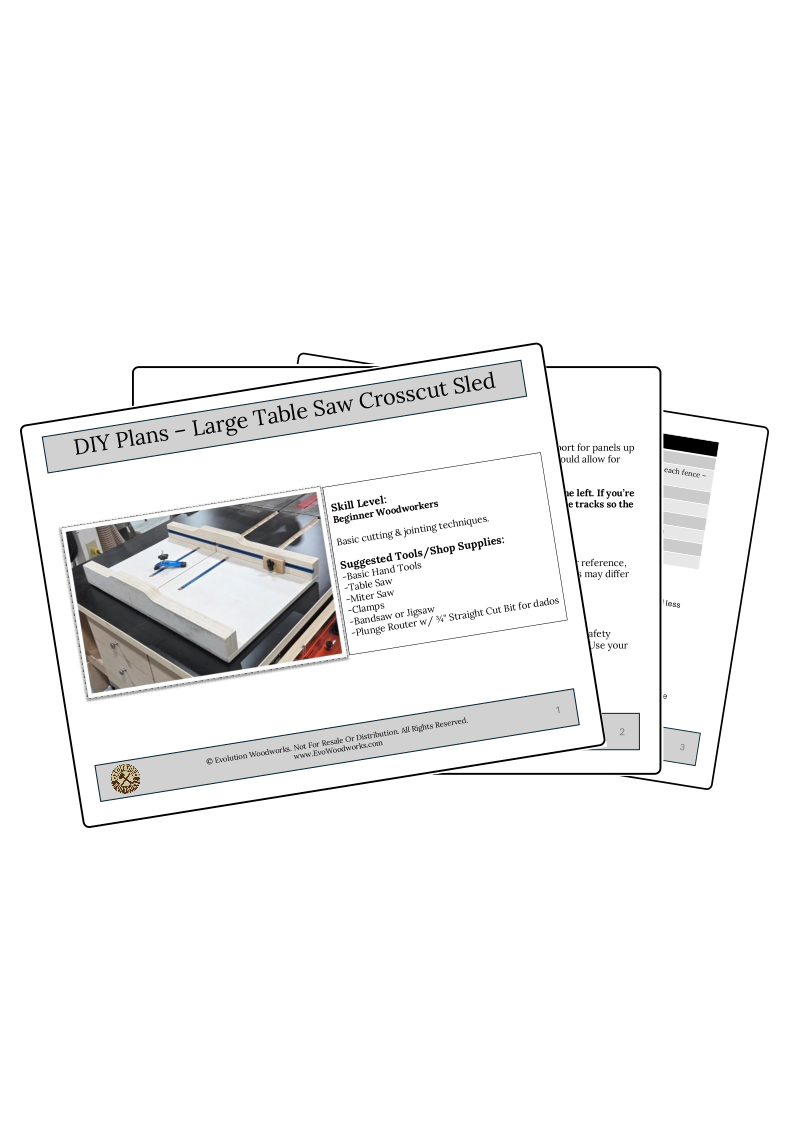

You’ll receive a 10-page digital PDF including:

• Detailed 2D & 3D diagrams with clear dimensions.

• Full cut list and hardware requirements with links.

• Step-by-step assembly sequence that skips the fluff.

• The "No-Math" calibration guide.

• Link to my video showing how I build it.

Once purchase is completed you'll be able to download the .pdf file containing the full color plans. You may use these plans to create your own board and print if needed.

DIGITAL FILES INTENDED FOR PERSONAL USE. THESE FILES ARE NOT TO BE REDISTRIBUTED OR SOLD AS YOUR OWN.
