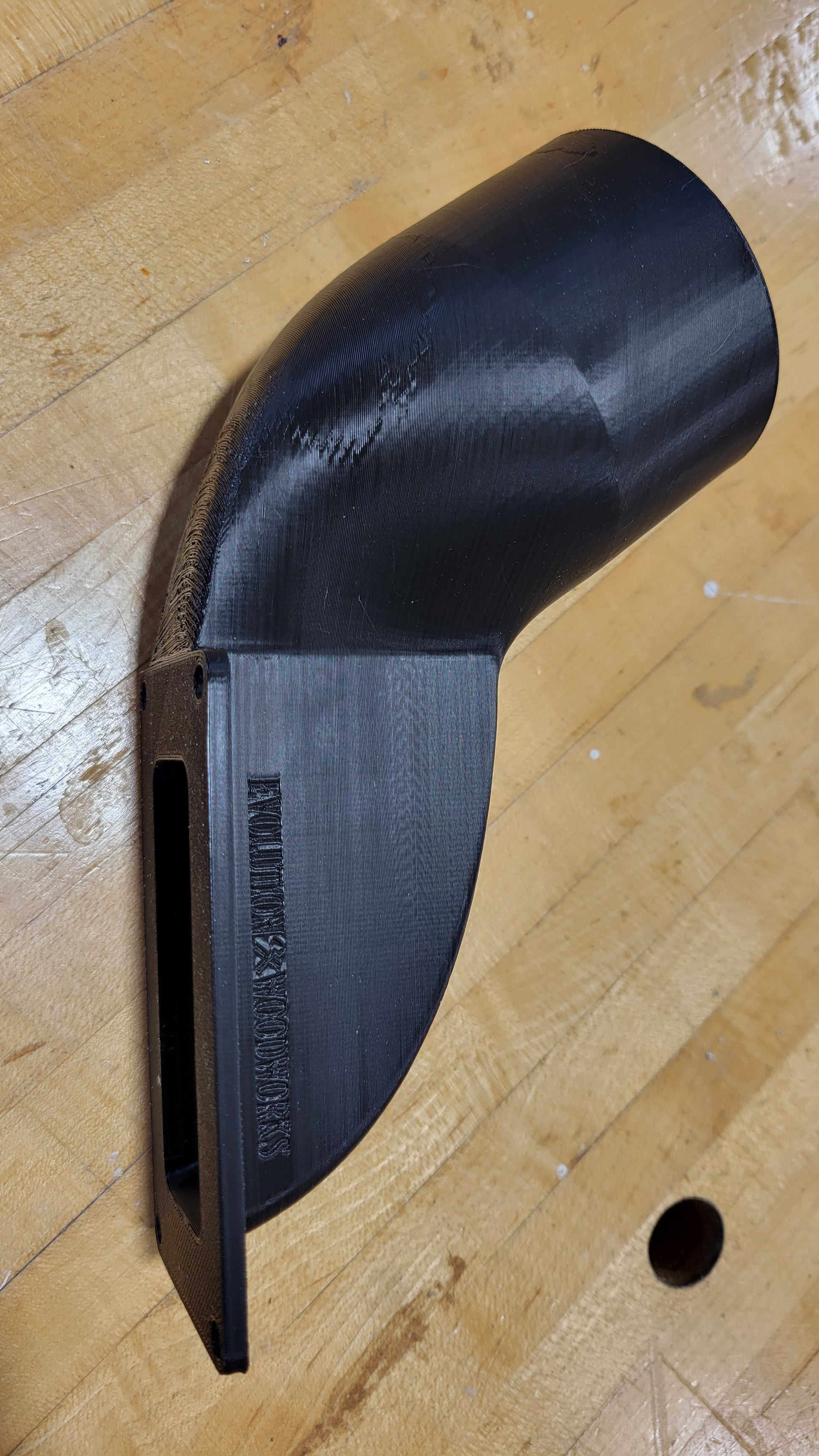

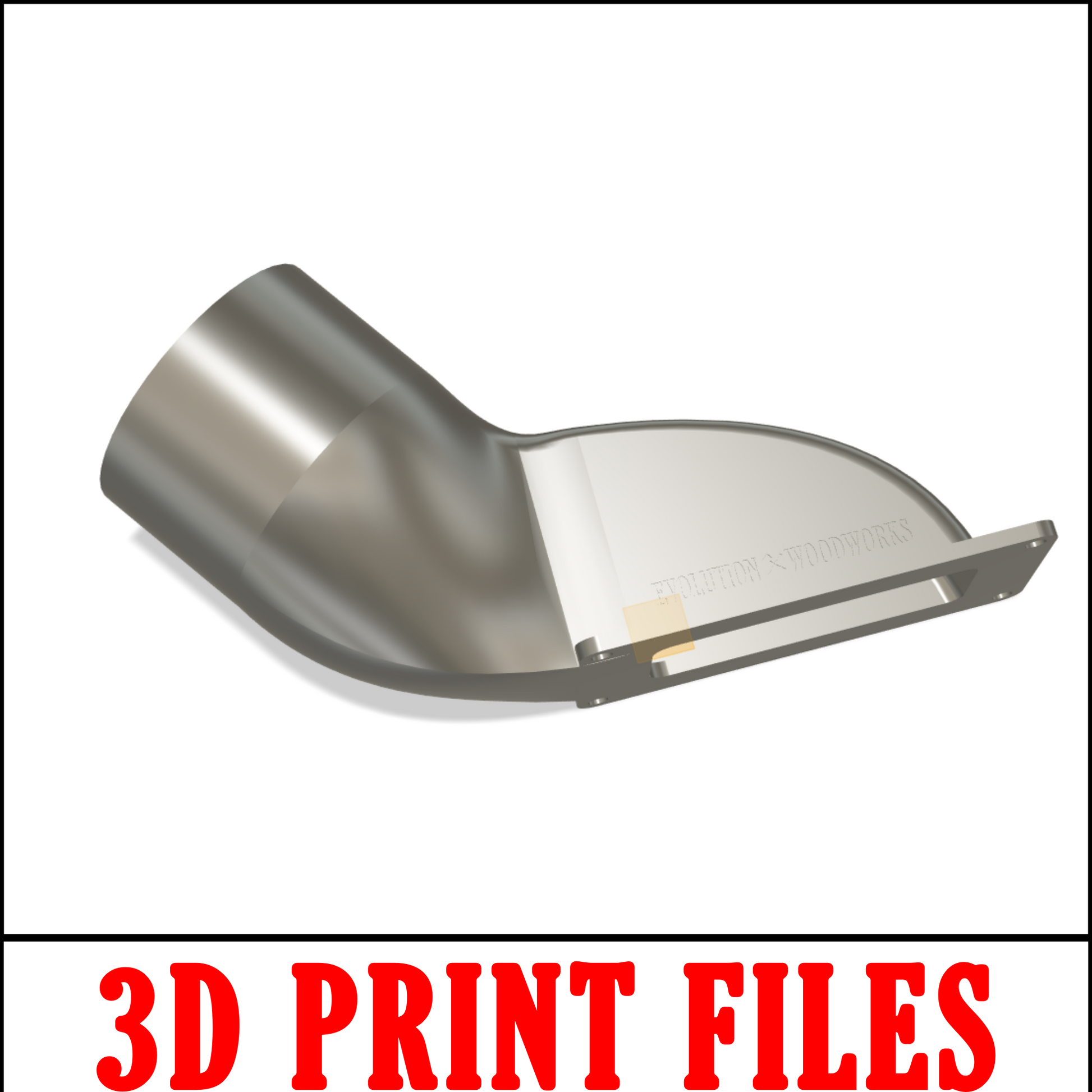

Drill Press Dust Collector Port - 3D Print STL & STEP Bundle

Our best selling Drill Press Dust Collector Port is now available in a DIY downloadable STL and STEP files so you can print your own.

Features & Specs:

1. 1. Maximizes air flow and useable table space
   2. Offset hose connection to avoid rear post
   3. Minimal decrease in air volume while still compact and high clearance

   4. Raised intake to avoid blocking suction with work piece on tall fences
   5. Designed to work with standard 2-1/4" OD hose ends (shop vac or dust collection hoses)

   6. Mounting Flange dimensions 2" x 4"
   7. Works with wooden or aluminum fences. (Mounting holes may interfere with slots in aluminum extrusion type fences. Adhesive/Tape connection is recommended in this case)

Printing Tips:

• Standard slicer settings should work however you may need to make adjustments for your particular setup.
• Prints well in PLA or PETG for ease of printing and strength.
• Print with the mounting flange down on plate with Supports ON. I use tree supports to reach up inside and support the inner tube.
• Use 0.20mm or smaller for best print quality
• If holes are too tight or loose you may need to make adjustments to your slicer's hole tolerance to get the fit dialed in.
